G4T4 - Ger4tech

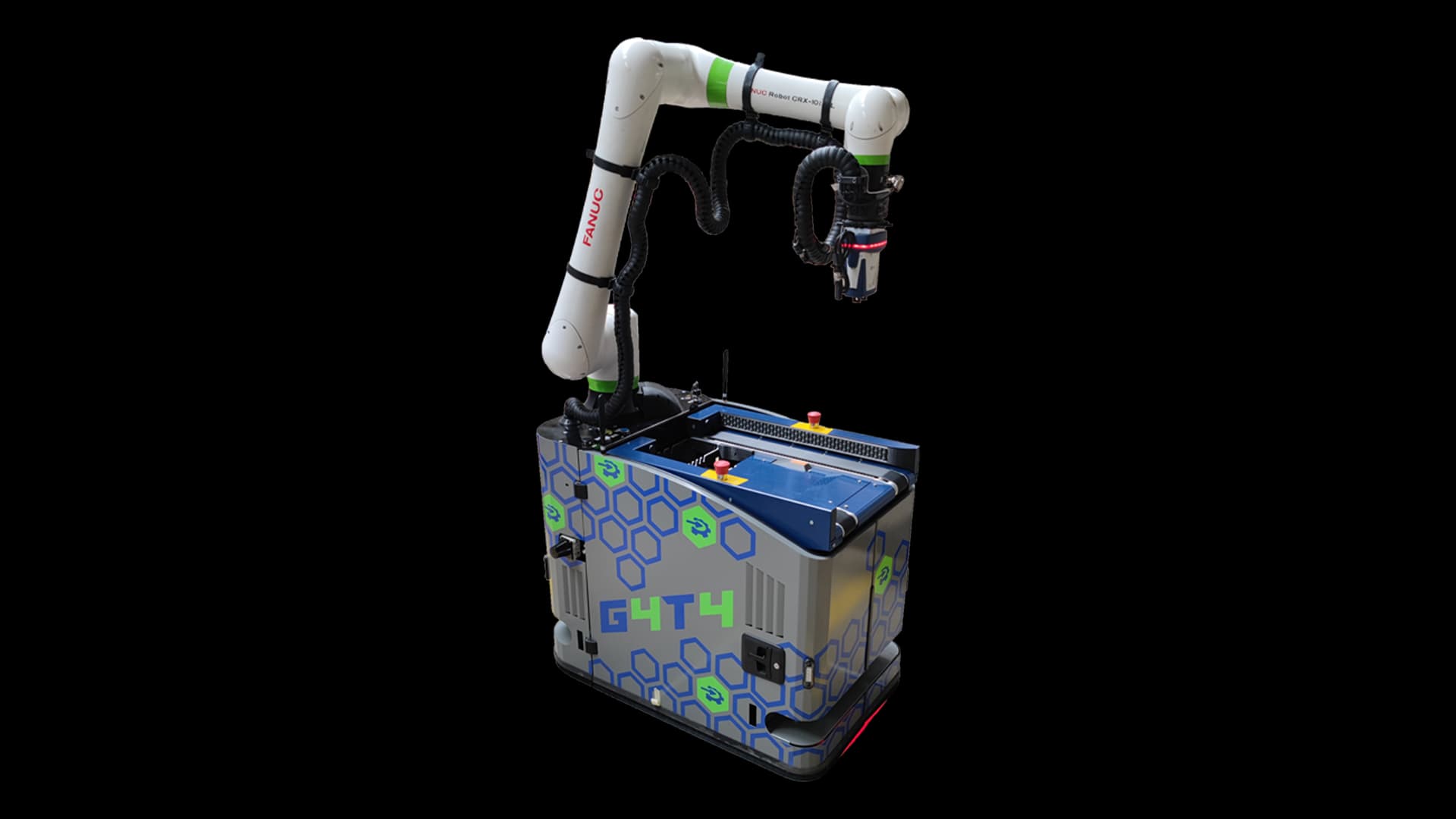

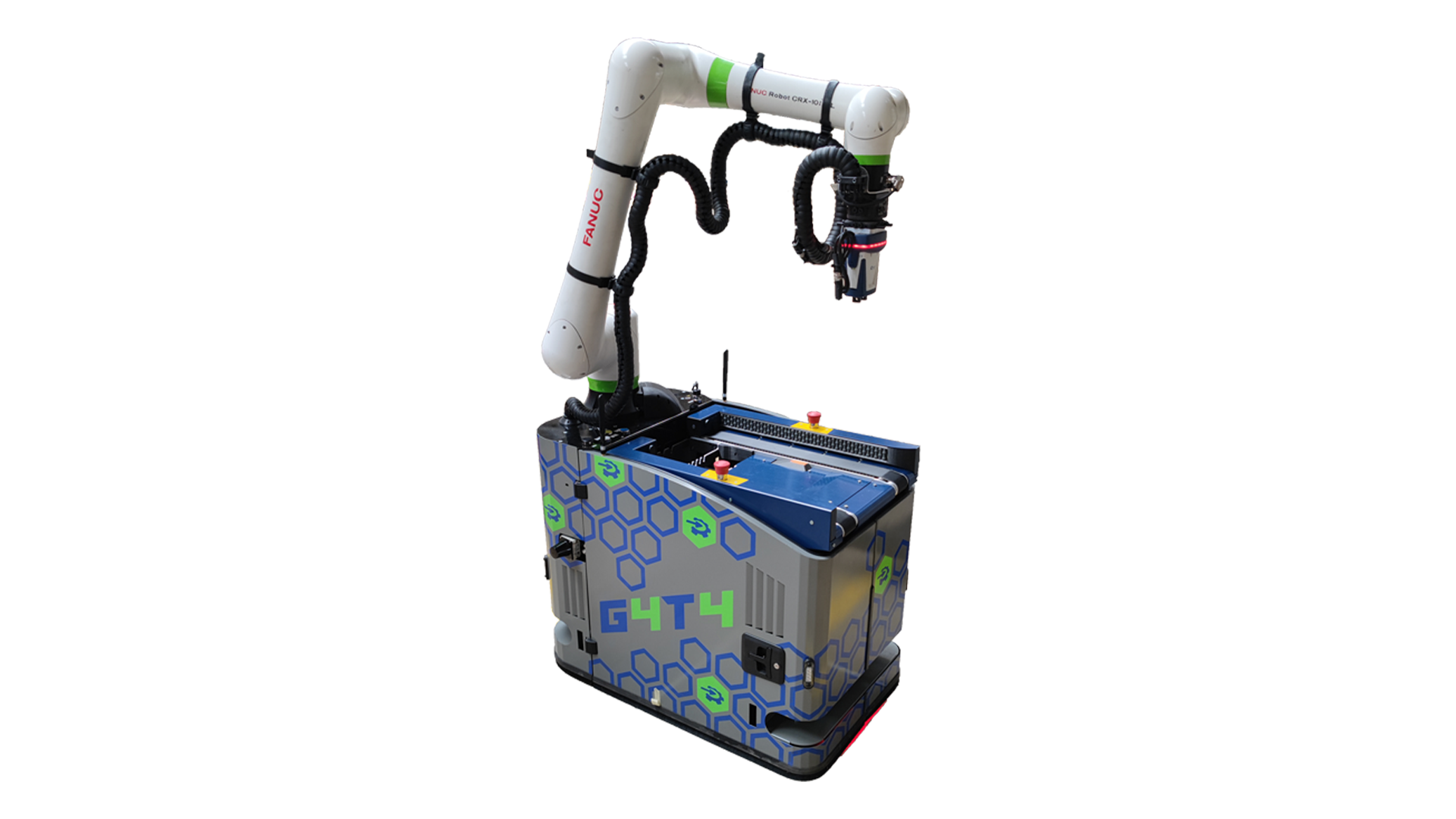

The G4T4 - Mobile Cobot moves autonomously and can seamlessly switch between different work areas, while also being able to transport material. These features enable full automation of handling and logistics processes.

The collaborative robot arm mounted on the robot is specifically designed for human collaboration. In addition, the robots are equipped with collaborative end-of-arm tooling (EoAT) to make the applications even more diverse.

G4T4 - Mobile Cobots can be used in a wide range of applications, from machine tool handling applications to raw material and finished part transport, pick-and-place applications and warehouse picking. With the ability to move in any working environment, the G4T4 robot opens up new possibilities for the automation of production processes.

facts

maximum speed

1,4 m/s

weight

270 kg

drive type

Differential drive

operation time

up to 6 h

charging speed

1 h

payload

25kg (arm 6 axes: 10 kg or 20 kg)

usage

Transport in Logistics

The G4T4 manages indoor routes from A to B, overcomes low thresholds and enables the transport of goods with a load of up to 25 kg thanks to its loading platform.

Collaborative Operation

The G4T4 is a collaborative robot, also known as a cobot, capable of performing work tasks in cooperation with humans. Its arm is equipped with versatile end-of-arm tooling that offers a wide range of application possibilities thanks to its flexibility and the integration of various sensors. These possibilities include gripping and assembling components as well as detecting different materials.
